Waveshare CM5 Mini Base Board (A) Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, Suitable for Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Marque: Waveshare
Nom de modèle: CM5 Mini Base Board (A)
Modèle du CPU: ARMv7
Technologie de connectivité: Ethernet, USB 3.2 Gen1, USB 2.0, PCIe, HDMI

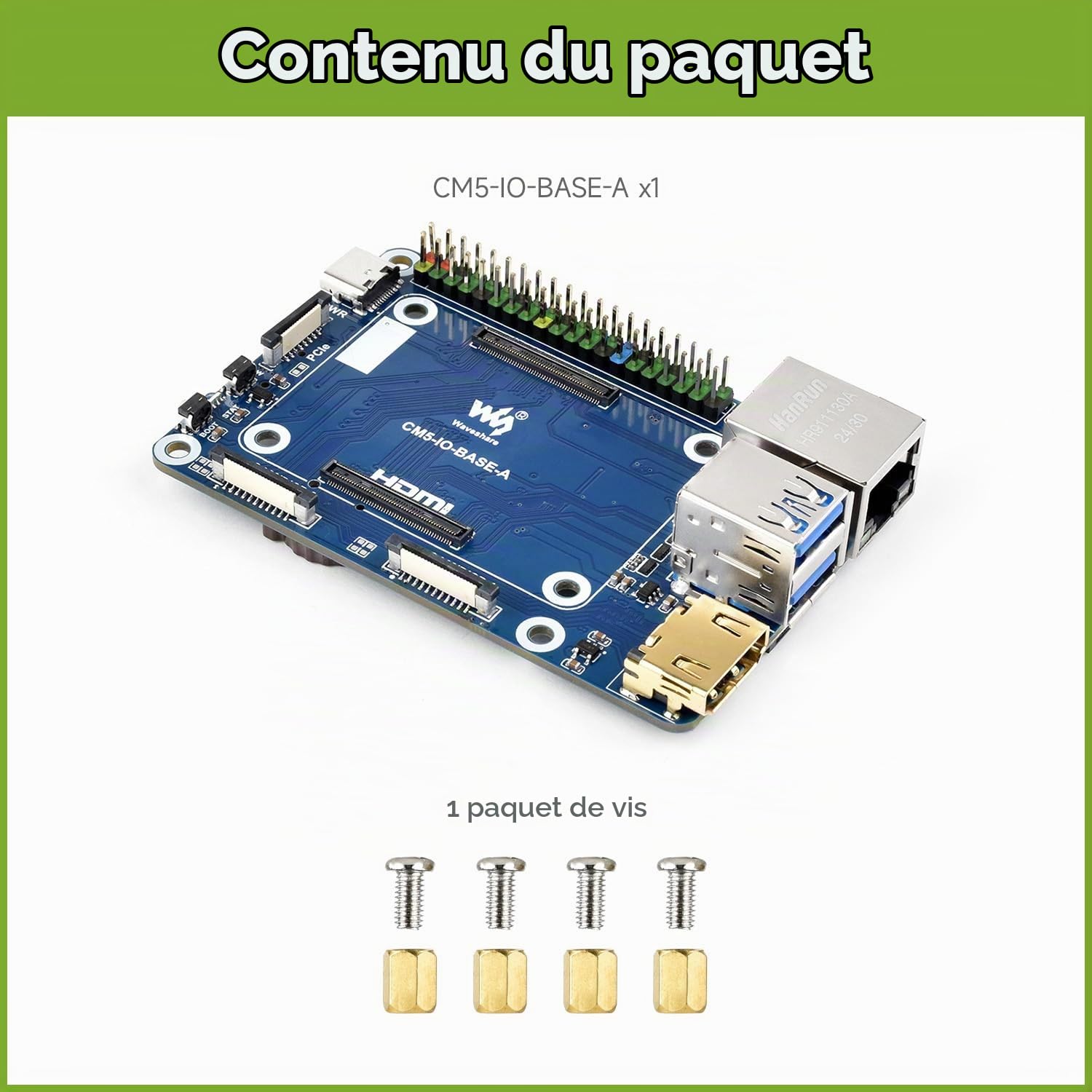

Composants inclus: CM5-IO-BASE-A
Système d'exploitation: Linux
Fabricant de CPU: Broadcom
Appareils compatibles: Module informatique Raspberry Pi CM5 / CM5 Lite, Ordinateur personnel
Technologie de mémoire RAM: LPDDR4
Nombre d'unités: 1.0 unité

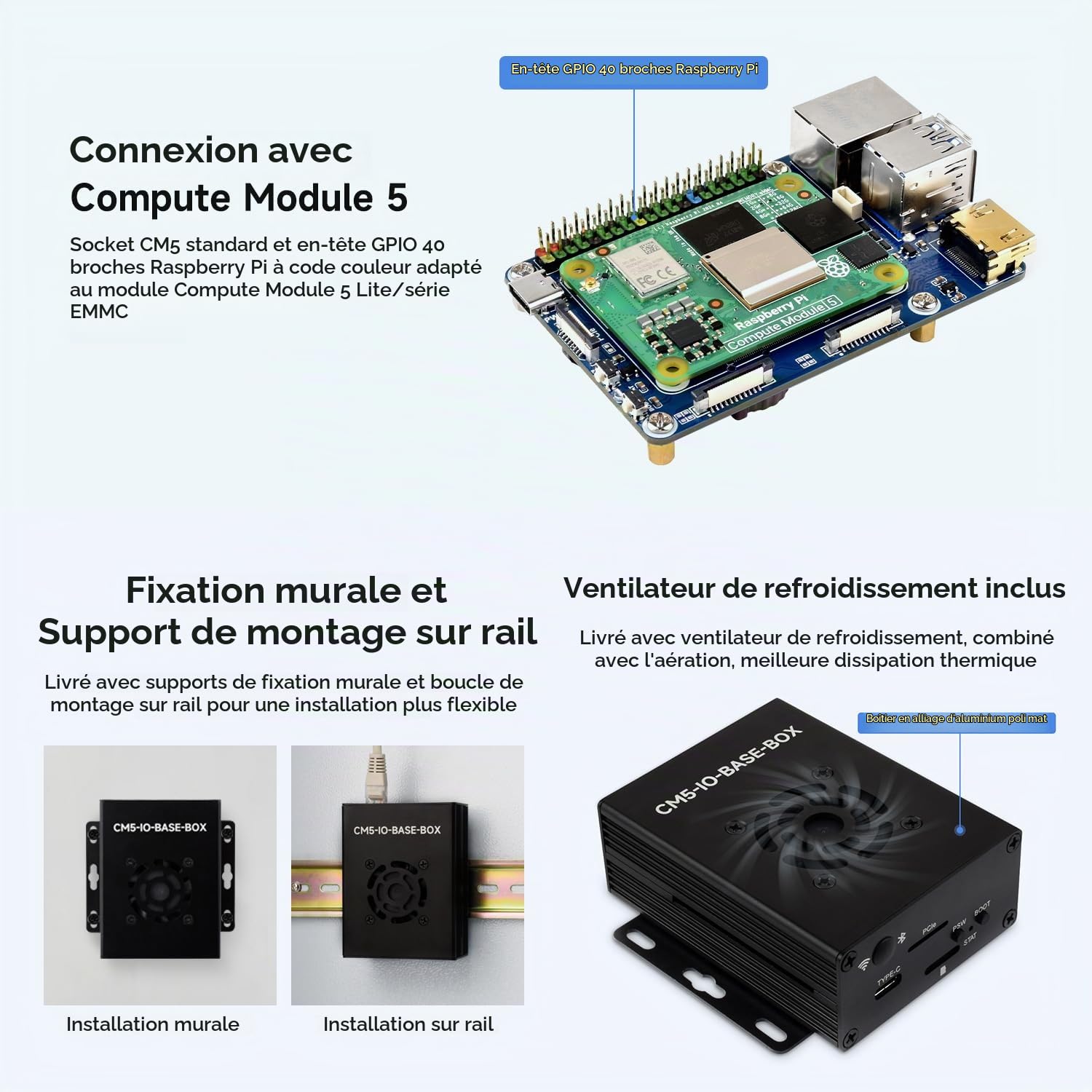

- Standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header; Suitable for Compute Module 5 Lite/eMMC series module

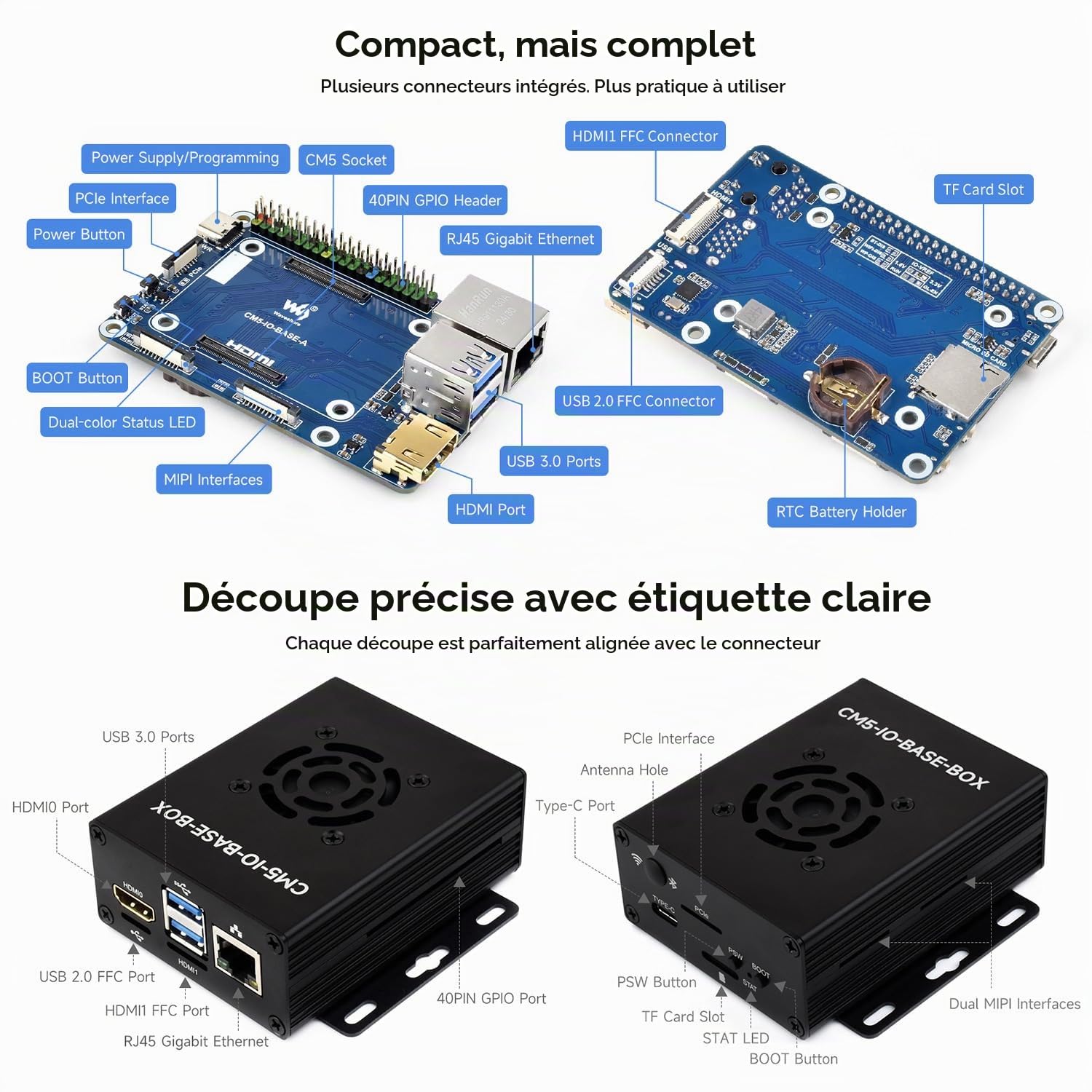

- Onboard multiple connectors, more convenient to use

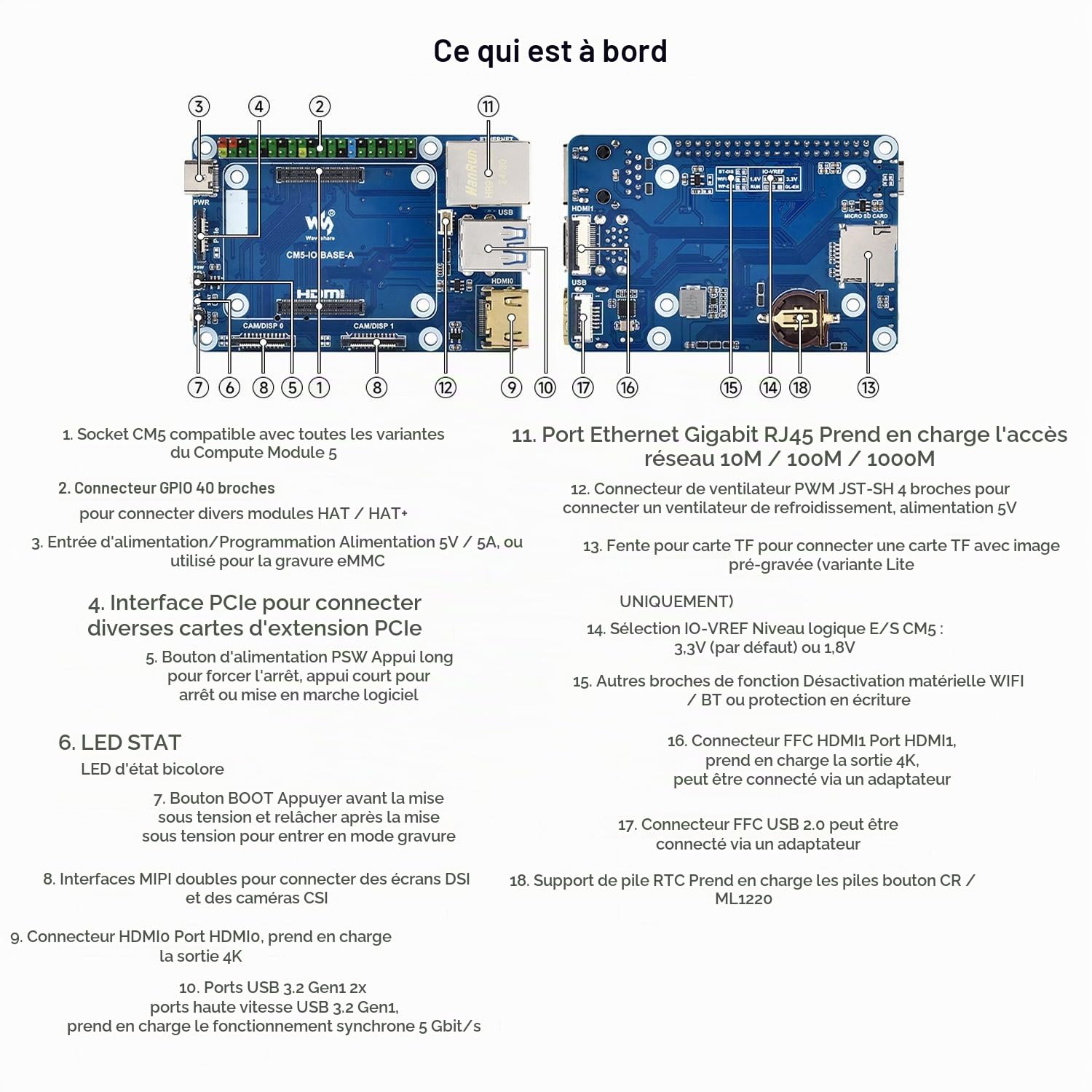

- Gigabit Ethernet RJ45 connector; 16PIN PCIe (PCIe Gen2/3 x1); USB 3.2 Gen1 Type Ax2, USB 2.0 via 6PIN 1mm FFC connectorx2; 5V, 4PIN JST-SH PWM connector; DC 5V 5A power input
- 4-lane MIPI interfacex2 (22pin 0.5mm FFC connector); HDMI portx2 (including one port via FFC connector), supports dual 4K outputs; TF card slot for Compute Module 5 Lite (without eMMC) variants;
