Waveshare V4 2.13inch E-Paper Hat+ for Raspberry Pi 5 /for Raspberry Pi Zero 2 W/for Raspberry Pi 3 B/for Raspberry Pi 4B /for Pi Pico W, 250x122, SPI, Hat+ Standard E-Ink Display for pwnagotchi kit

Appareils compatibles: Raspberry Pi Series Boards, Jetson Nano
Usages spécifiques pour le produit: Affichage sur Raspberry Pi, Portage pwnagotchi
Type de connecteur: GPIO
Couleur: Noir/blanc
Marque: Waveshare
Nombre de ports: 2
Quantité d'articles dans le colis: 1
Type de prise d'alimentation: Aucune prise
Nombre d'unités: 1.0 unité
Nombre d'articles: 1

- 2.13″ E-Paper HAT+, compared to the previous Waveshare V2, Waveshare V3 and Waveshare V4 basic versions, this latest V4 version with upgraded HAT+ Standard brings improved interoperability. Support Partial Refresh, Low Power, 170° Wide Viewing Angle, Black and White Color, Paper-Like Effect

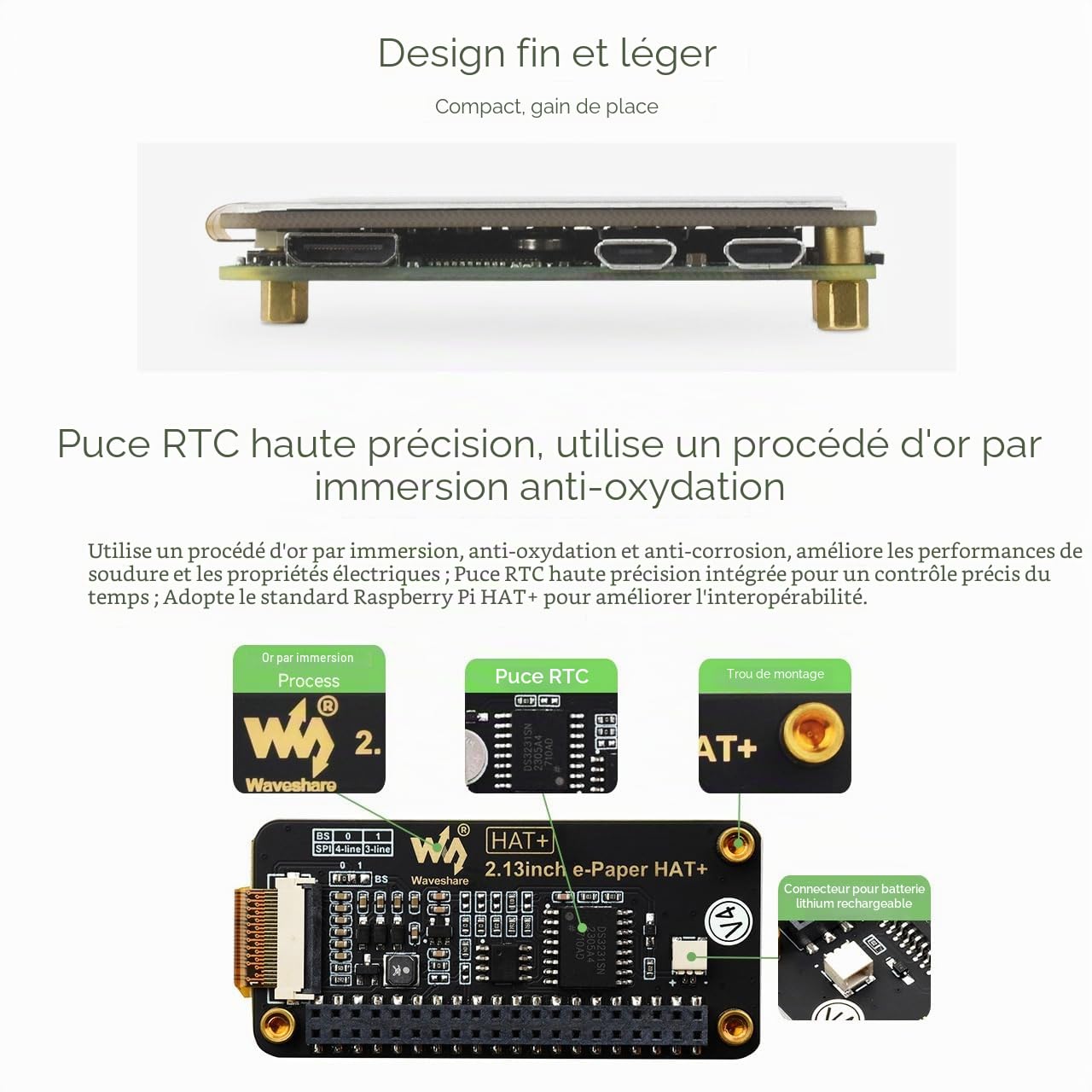

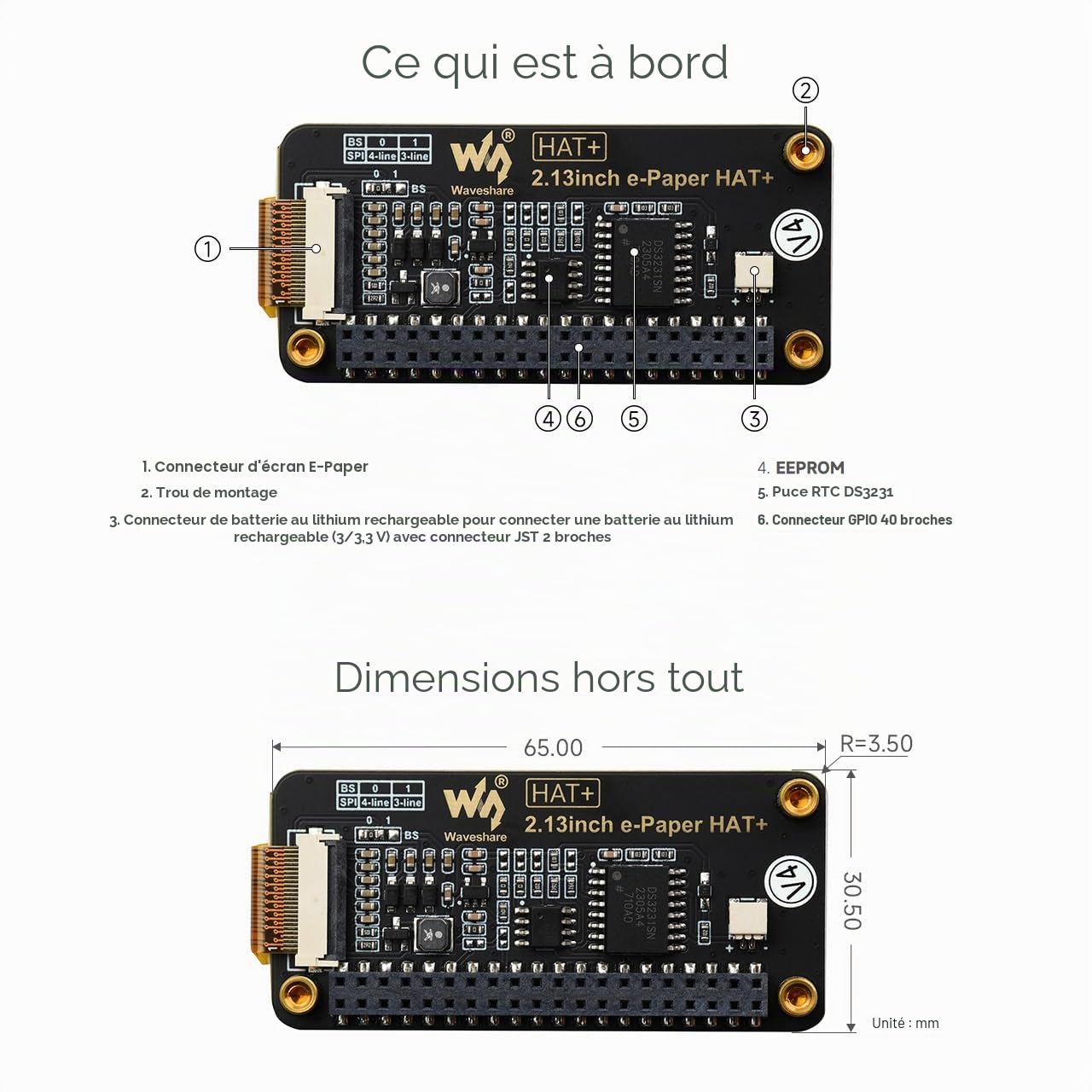

- With standard Pi 40PIN GPIO Header, compatible With Raspberry Pi Series Boards/Jetson Nano. Onboard high-precision RTC chip for accurate time control. Optimized PCB layout with additional mounting holes for fixing screws
- Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties, with better durability and reliability to meet various applications. Thin and light design, compact in Size, more space-saving
- Adopts Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- No backlight required, can maintain the display content of the last screen for a long time when powered off. Can provide with online development resources and manual, such as driver board circuit diagram, examples for Raspberry Pi OS/Jetson Nano and can provide pwnagotchi porting tutorial
